Calibration Score 70mm |
Calibration Score 300mm |
The calibration information shows how well calibrated this lens is likely to be new, out of the box. A higher score (close to 100) indicates that you are less likely to need to calibrate the lens. The score takes into account the likely amount of calibration required, the variation in calibration across many lenses as well as the likely improvement between an uncalibrated and calibrated lens. For zoom lenses, we also use parfocality, which is a measure of the difference in calibration required between each end of the zoom range.
Summary
The summary information shows the metrics measured to build the score.

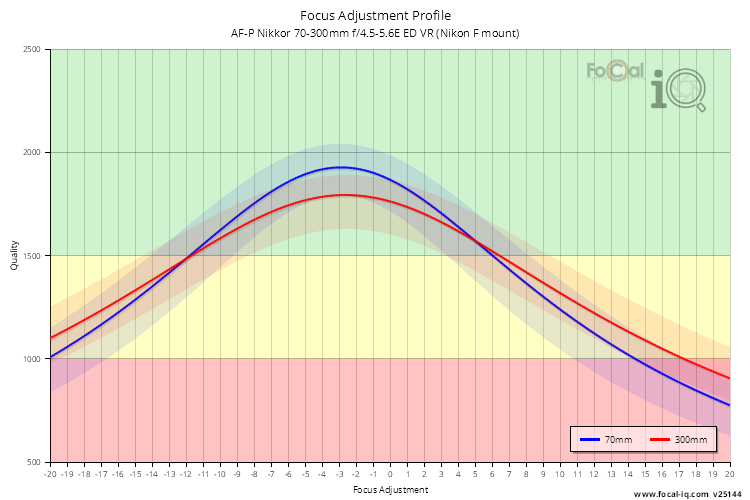

Focus Adjustment Profile
The curve is the composite quality levels across all copies of this lens.
| 70mm | 300mm | |
|---|---|---|
| Typical Focus Adjustment Value | -3.1 units | -2.8 units |
| Adjusted Focus Quality Improvement | 3.4% | 2.1% |

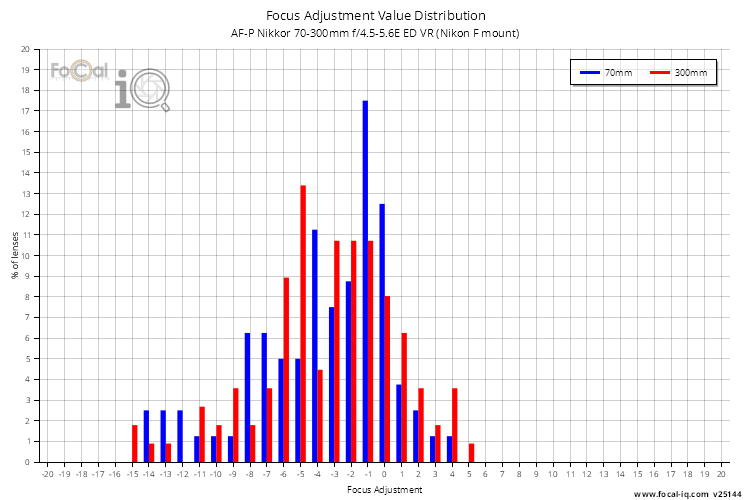

Focus Adjustment Value Distribution
The bar height indicates the percentage of camera/lens combinations that resulted in the specified focus adjustment value.

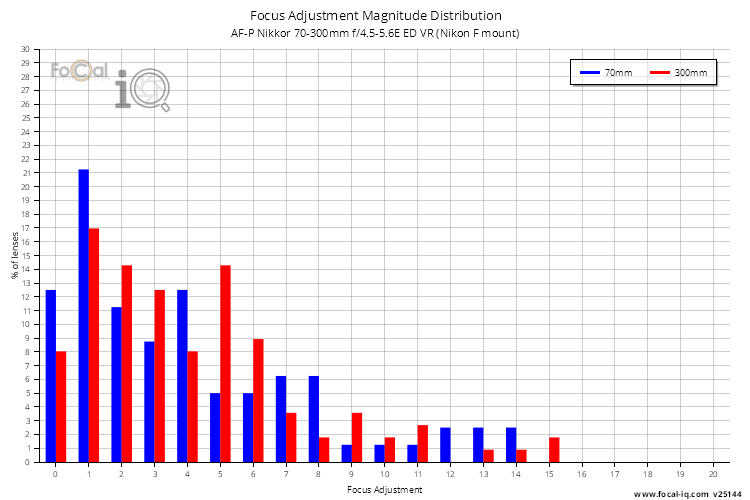

Focus Adjustment Magnitude Distribution
The bar height indicates the percentage of camera/lens combinations that resulted in the specified Focus Adjustment Magnitude. This is the size of the focus adjustment needed to calibrate the lens, ignoring the direction.
| 70mm | 300mm | |
|---|---|---|
| Typical Focus Adjustment Magnitude | 3.1 units | 3.2 units |

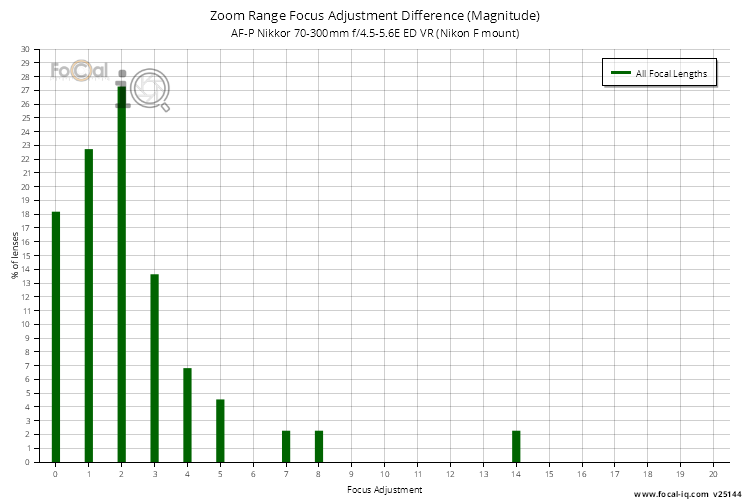

Parfocality
The bar height indicates the percentage of camera/lens combinations that resulted in the specified difference in calibration value between either end of the zoom range.
| 70mm | 300mm | |
|---|---|---|
| Parfocality | 2 units | 2 units |
Focus Score 70mm |
Focus Score 300mm |
The focus information shows how consistent and accurate the focus is for this lens, measured across all camera bodies.
Summary
The summary information shows the metrics measured to build the score.
| 70mm | 300mm | |
|---|---|---|
| Calibrated Focus Error | 0.9 units | 1.6 units |
Focus Consistency
The gauge(s) below show the average amount of error from perfect focus for this lens across all camera bodies. The value is expressed as focus adjustment units (i.e. AF Microadjustment units for Canon cameras, AF Fine Tune units for Nikon, Sony etc). The lower the value, the better the focus repeatability on this lens.
70mm
300mm

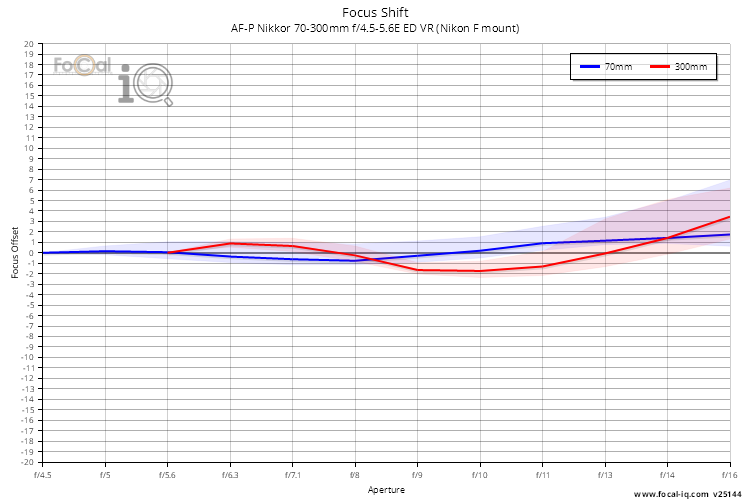

Focus Shift
The focus shift information shows how the point of best focus changes across the aperture range.

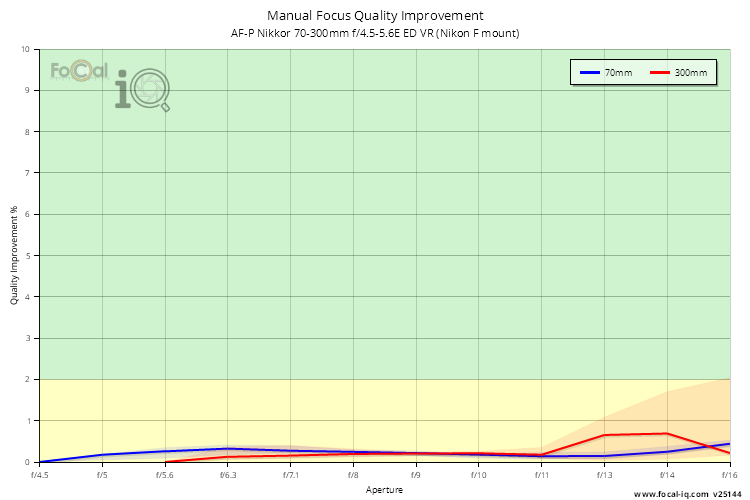

Refocus Quality Improvement
The Refocus Quality Improvement shows the typical percentage quality improvement obtained by manually focusing the lens instead of using autofocus across the aperture range.
The autofocus system on a camera typically operates with the aperture either wide open or stopped down just a little, meaning that focus shift can affect the image quality obtained from the lens.
For lenses with significant focus shift, the best quality can be obtained by manually refocusing when the aperture is stopped down, or by calibrating the lens at a specific aperture (see Peak Aperture Profile below).

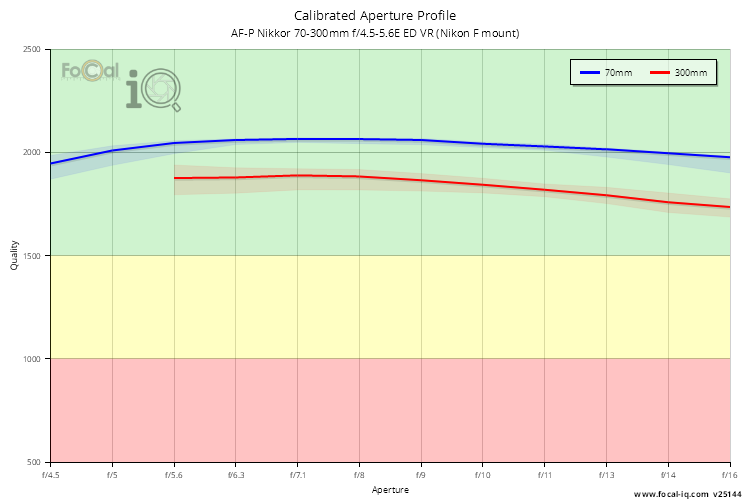

Calibrated Aperture Profile
The Calibrated Aperture Profile shows the typical sharpness that can be expected across the aperture range when using autofocus on a calibrated lens.

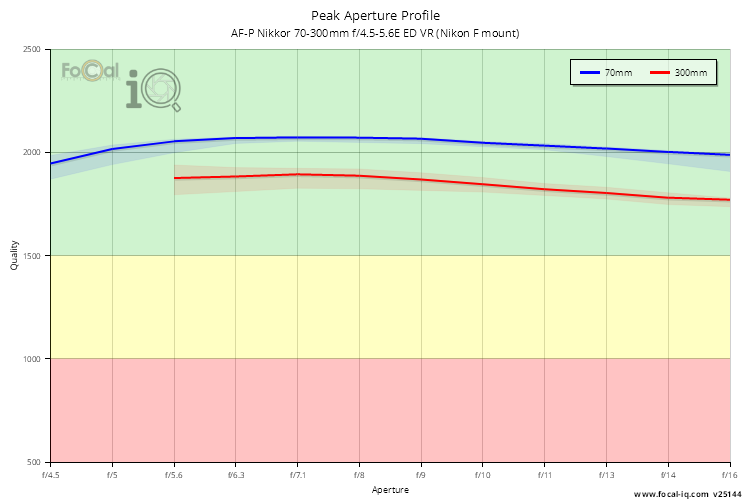

Peak Aperture Profile
The Peak Aperture Profile shows the typical peak sharpness that can be expected when the lens is manually refocused to the sharpest image for each aperture.
This is the best quality that can be obtained from the lens at each aperture.
Wide Performance Score 70mm |
Wide Performance Score 300mm |
The wide information shows the performance of the lens when wide open. The measurements are comparisons with the values at the aperture of best image quality, and include measurements of quality, astigmatism and colour-specific quality.
Summary
The summary information shows the metrics measured to build the score.

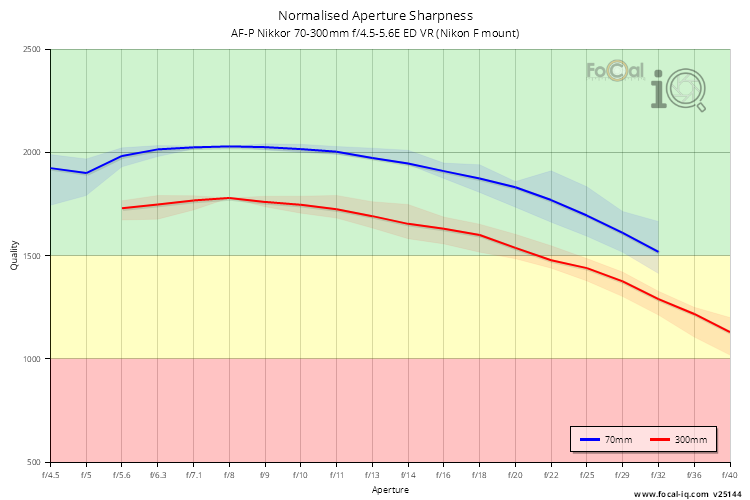

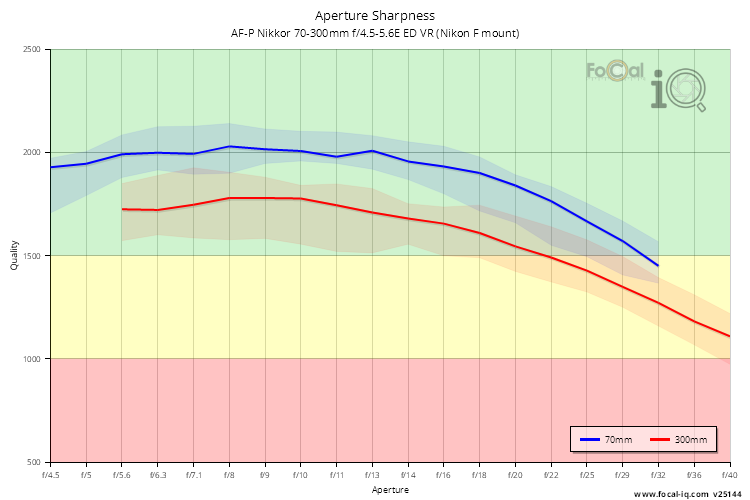

Aperture Sharpness Profile
| 70mm | 300mm | |
|---|---|---|
| Wide Quality Change (vs best IQ) | -9.6% | -3.5% |

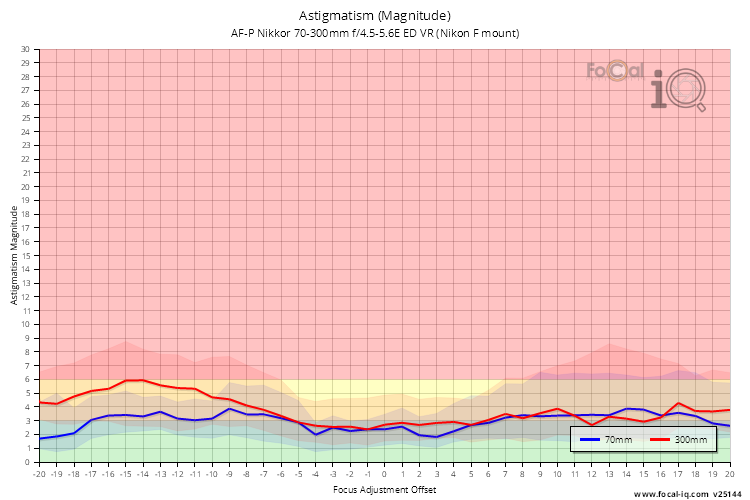

Astigmatism
| 70mm | 300mm | |
|---|---|---|
| Astigmatism (wide) | 2.4% | 2.7% |
| Astigmatism (at best IQ) | 1.7% | 1.2% |
| Wide Astigmatism Change (vs best IQ) | +0.6% | +1.6% |
Red/Blue Quality
| 70mm | 300mm | |
|---|---|---|
| Red Quality (wide) | 98.8% | 98.7% |
| Red Quality (at best IQ) | 98.6% | 98.5% |
| Wide Red Quality Change (vs best IQ) | +0.2% | +0.2% |
| 70mm | 300mm | |
|---|---|---|
| Blue Quality (wide) | 91.0% | 95.4% |
| Blue Quality (at best IQ) | 101.5% | 95.4% |
| Wide Blue Quality Change (vs best IQ) | -9.9% | 0.0% |
Peak Performance Score 70mm |
Peak Performance Score 300mm |
The peak information shows the performance of the lens at the aperture of best image quality.
Summary
The summary information shows the metrics measured to build the score.

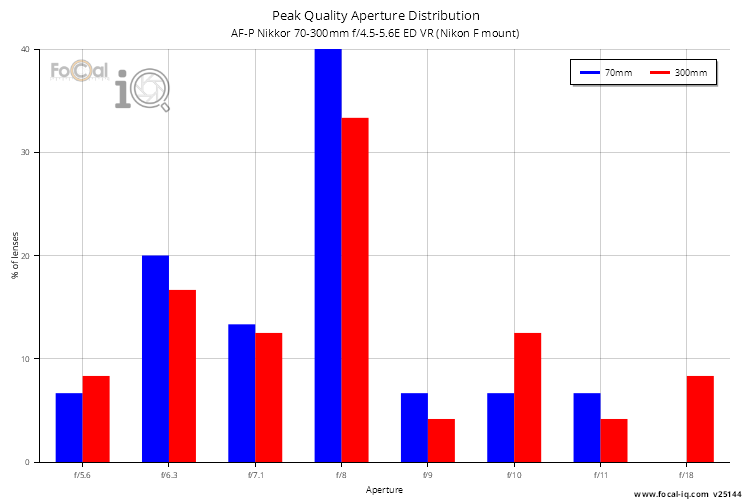

Peak Histo
| 70mm | 300mm | |
|---|---|---|
| Peak Aperture Range | f/6.4 to f/9.1 | f/6.1 to f/11 |
| Typical Peak Aperture | f/8 | f/8 |
Aperture Sharpness Profile
| 70mm | 300mm | |
|---|---|---|
| Aperture at Peak Quality | f/8 | f/8 |
| Peak Ouality Variation | 13.8% | 22.2% |
| High Quality Apertures (to f/8) | 4 of 6 (67%) | 2 of 4 (50%) |
Astigmatism
| 70mm | 300mm | |
|---|---|---|
| Astigmatism (at best IQ) | 1.7% | 1.2% |
Red/Blue Quality
| 70mm | 300mm | |
|---|---|---|
| Red Quality (at best IQ) | 98.6% | 98.5% |
| 70mm | 300mm | |
|---|---|---|
| Blue Quality (at best IQ) | 101.5% | 95.4% |
Vignetting Score 70mm |
Vignetting Score 300mm |
The vignetting information shows how the light is attenuated in the corners of the frame across the aperture range.
Summary
The summary information shows the metrics measured to build the score.
Full Frame
| 70mm | 300mm | |
|---|---|---|
| Vignetting | -1.6 EV | -2.1 EV |
| Affected Stop Count | 3.7 | 4.3 |
APS C
| 70mm | 300mm | |
|---|---|---|
| Vignetting | -0.5 EV | -0.7 EV |
| Affected Stop Count | 1.0 | 1.9 |

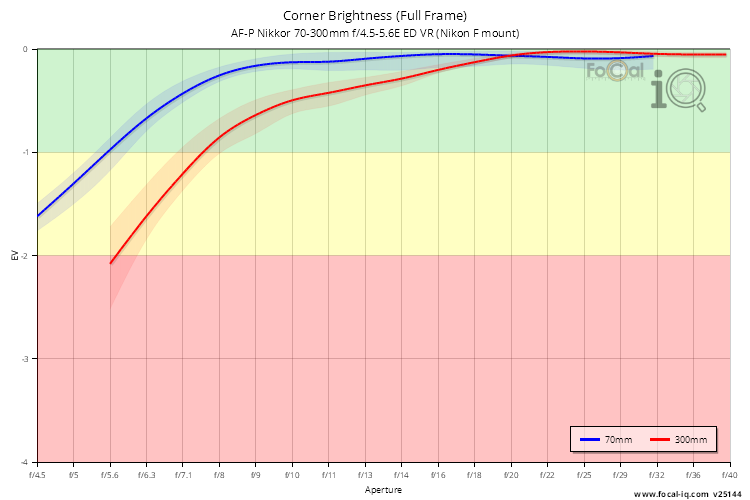

Corner Brightness Profile
Aberration Score 70mm |
Aberration Score 300mm |
The aberrations information shows details of the astigmatism and colour quality changes across the aperture and focus range.
Aberration Score 70mm |
Aberration Score 300mm |
Summary
The summary information shows the metrics measured to build the score.
| 70mm | 300mm | |
|---|---|---|
| Wide Aperture | f/4.5 | f/5.6 |
| Aperture at Peak Quality | f/8 | f/8 |
| 70mm | 300mm | |
|---|---|---|
| Astigmatism (at best IQ) | 1.7% | 1.2% |
| Astigmatism (wide) | 2.4% | 2.7% |
| Wide Astigmatism Change (vs best IQ) | +0.6% | +1.6% |
| Median Astigmatism | 1.4% | 2.5% |
| 70mm | 300mm | |
|---|---|---|
| Red Quality (at best IQ) | 98.6% | 98.5% |
| Red Quality (wide) | 98.8% | 98.7% |
| Wide Red Quality Change (vs best IQ) | +0.2% | +0.2% |
| Median Red Quality | 98.5% | 98.3% |
| 70mm | 300mm | |
|---|---|---|
| Blue Quality (at best IQ) | 101.5% | 95.4% |
| Blue Quality (wide) | 91.0% | 95.4% |
| Wide Blue Quality Change (vs best IQ) | -9.9% | 0.0% |
| Median Blue Quality | 98.9% | 96.9% |
Quality
| 70mm | 300mm | |
|---|---|---|
| Wide Aperture | f/4.5 | f/5.6 |
| Aperture at Peak Quality | f/8 | f/8 |

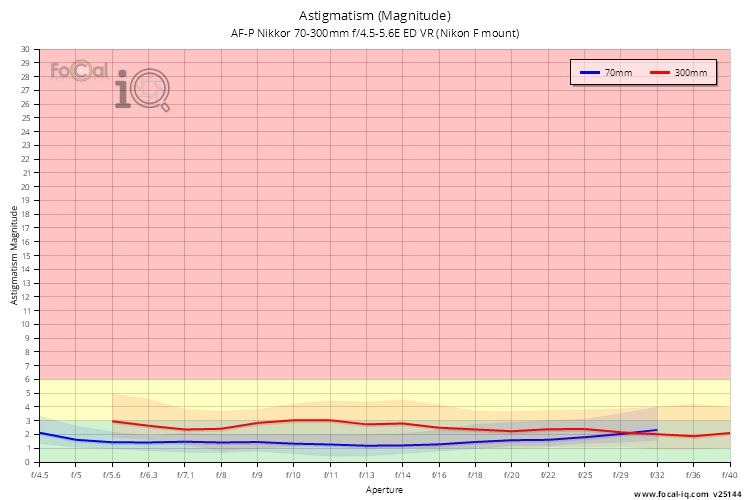

Astigmatism
| 70mm | 300mm | |
|---|---|---|
| Astigmatism (wide) | 2.4% | 2.7% |
| 70mm | 300mm | |
|---|---|---|
| Astigmatism (at best IQ) | 1.7% | 1.2% |
| Astigmatism (wide) | 2.4% | 2.7% |
| Wide Astigmatism Change (vs best IQ) | +0.6% | +1.6% |
| Median Astigmatism | 1.4% | 2.5% |

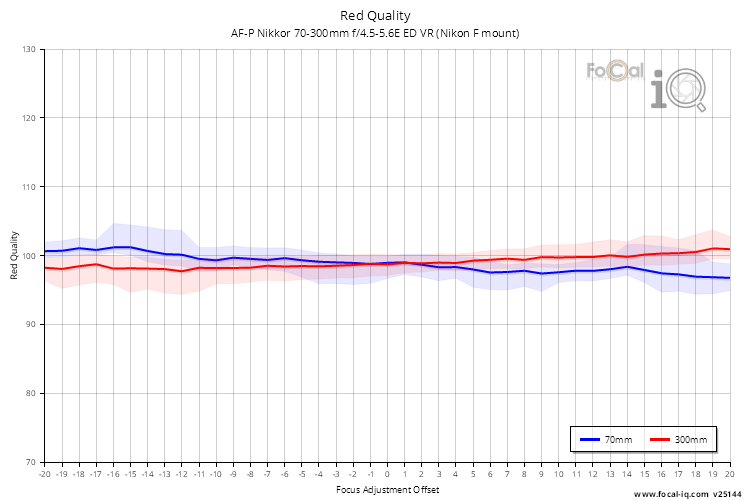

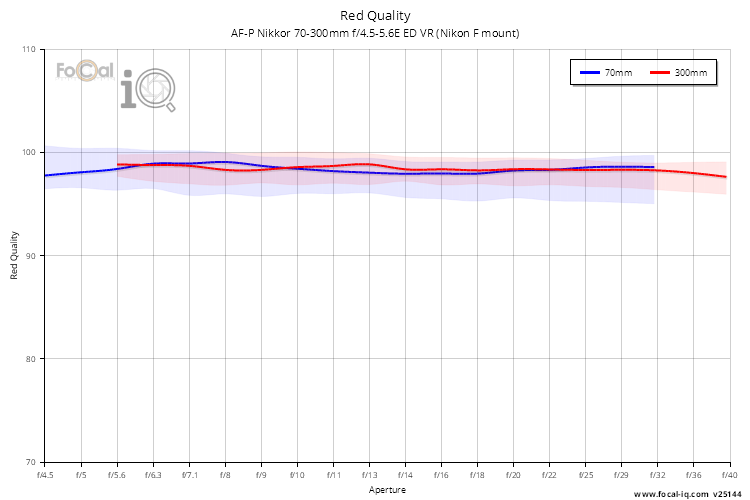

Red
| 70mm | 300mm | |
|---|---|---|
| Red Quality (wide) | 98.8% | 98.7% |
| 70mm | 300mm | |
|---|---|---|
| Red Quality (at best IQ) | 98.6% | 98.5% |
| Red Quality (wide) | 98.8% | 98.7% |
| Wide Red Quality Change (vs best IQ) | +0.2% | +0.2% |
| Median Red Quality | 98.5% | 98.3% |

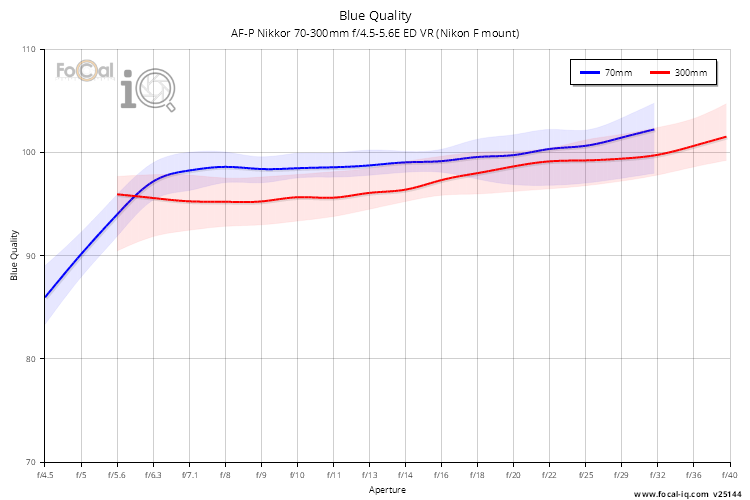

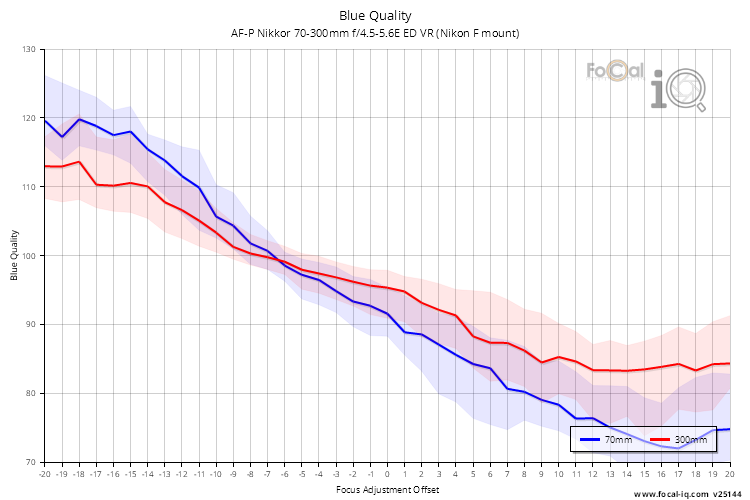

Blue
| 70mm | 300mm | |
|---|---|---|
| Blue Quality (wide) | 91.0% | 95.4% |
| 70mm | 300mm | |
|---|---|---|
| Blue Quality (at best IQ) | 101.5% | 95.4% |
| Blue Quality (wide) | 91.0% | 95.4% |
| Wide Blue Quality Change (vs best IQ) | -9.9% | 0.0% |
| Median Blue Quality | 98.9% | 96.9% |
Prduction Quality Score 70mm |
Prduction Quality Score 300mm |
The physical quality information combines consistency and quality metrics to indicate the overall physical (electrical, mechanical and optical) quality and consistency of the lens.
Summary
The summary information shows the metrics measured to build the score.
Focus Adjustment Profile
| 70mm | 300mm | |
|---|---|---|
| Calibration Quality Variation | 14.1% | 14.6% |
Focus Adjustment Magnitude Distribution
| 70mm | 300mm | |
|---|---|---|
| Typical Focus Adjustment Magnitude | 3.1 units | 3.2 units |
| Focus Adjustment Variation | 4.1 units | 4.1 units |
Aperture Sharpness Profile
| 70mm | 300mm | |
|---|---|---|
| Peak Ouality Variation | 13.8% | 22.2% |

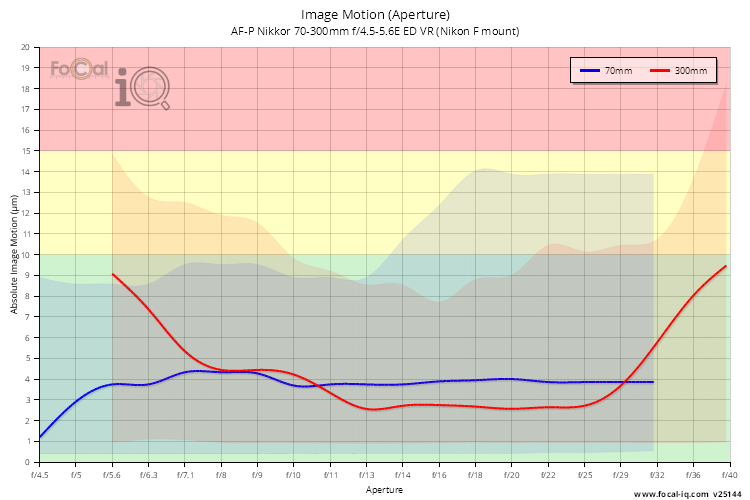

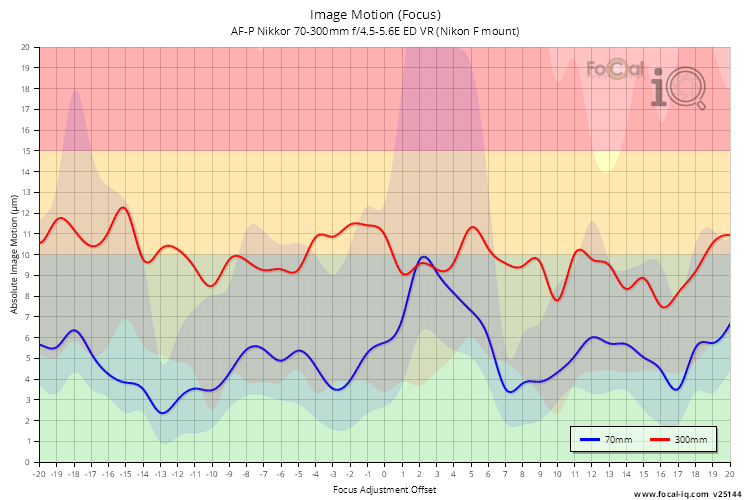

Image Motion
| 70mm | 300mm | |
|---|---|---|
| Focus Change Image Motion | 6.3 μm | 10.1 μm |
| 70mm | 300mm | |
|---|---|---|
| Aperture Change Image Motion | 3.8 μm | 4.6 μm |
Parfocality
| 70mm | 300mm | |
|---|---|---|
| Parfocailty Variation | 2.5 units | 2.5 units |
